Product Details:
Payment & Shipping Terms:
|
| Name: | Gas Regulator | Application: | Gas System |
|---|---|---|---|
| Material: | Forge Copper | Color: | Yellow |
| Medium: | Argon / CO2 | ||
| Highlight: | Medical Gas System In Hospitals,medical gas equipment |
||

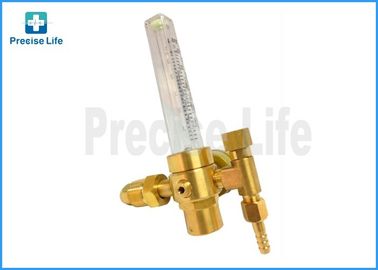

HTP G5/8 male thread Argon CO2 Mig Tig Flow meter Regulator Welding Weld Forged copper matetrialTig Welding Machines
Specification:
|
P/N: PL-191-03
|
|
Properties: Gas system parts
|
|
Type: Argon gas regulator
|
|
Medium: Argon /CO2
|
|
Inlet thread: G5/8 male thread
|
|
Outlet thread: M12 x 1
|
|
Outlet pressure: 0.25Mpa
|
|
Outlet Flux: 0-25L/min
|
|
Material: Forge copper
|
Description:
1. This regulator was designed for industrial manufacture,laboratory, MIG,TIG ,etc ,use for gas shielded arc welding
2. The regulator used single-stage decompress structure
3. The body was made by high quality forged copper
4. The cap was made by high strength Zinc Alloy and with chrome plated
5. Intake pipe with sintered bronze filter
6. 2’’ Pressure gauge
7. The flow tupe was made by shock resistance composite material, safe and durable
