Product Details:
Payment & Shipping Terms:
|
| Name: | Gas Regulator | Application: | Gas System |
|---|---|---|---|
| Material: | Zinc Alloy | Color: | Siliver |
| Medium: | Argon / CO2 | ||
| High Light: | Medical Gas System In Hospitals,medical gas equipment |
||

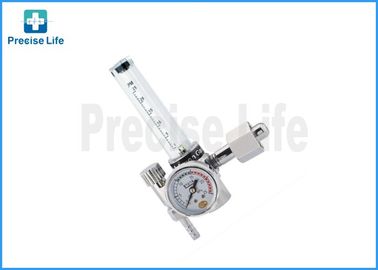

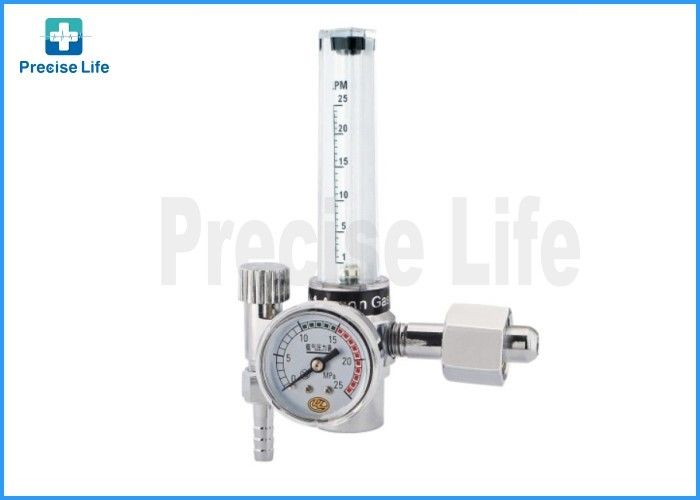

G5/8 female thread CO2 /Argon regulator Zinc Alloy CO2/Argon pressure regulator with Gas Flowmeter for Tig Welding
Specification:
|
P/N: PL-191-02
|
|
Properties: Gas system parts
|
|
Type: Argon gas regulator
|
|
Medium: Argon /CO2
|
|
Inlet thread: G5/8 female thread
|
|
Outlet thread: M12 x 1
|
|
Outlet pressure: 0.25Mpa
|
|
Outlet Flux: 0-25L/min
|
|
Material: Zinc Alloy
|
Description:
1. This regulator was designed for industrial manufacture,laboratory, MIG,TIG ,etc ,use for gas shielded arc welding
2. The regulator used single-stage decompress structure
3. The body was made by high quality forged copper
4. The cap was made by high strength Zinc Alloy and with chrome plated
5. Intake pipe with sintered bronze filter
6. 2’’ Pressure gauge
7. The flow tupe was made by shock resistance composite material, safe and durable
