Product Details:
Payment & Shipping Terms:
|
Name: | PSR-11-917-M Oxygen Sensor | Application: | Ventilator |
---|---|---|---|
Material: | ABS | Color: | Black |
Feature: | Original And New | ||
Highlight: | Medical O2 Sensor,Oxygen Sensor Medical |

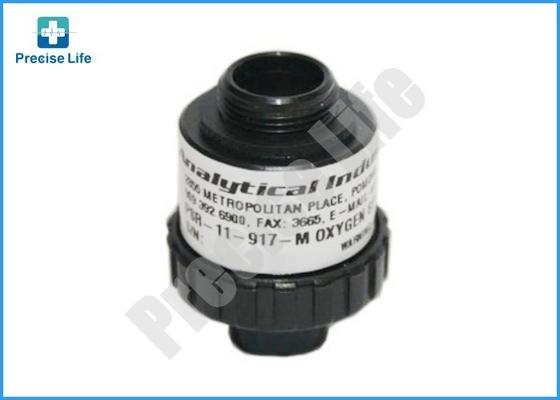

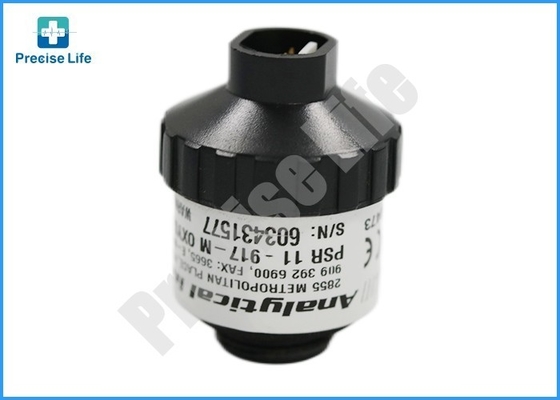

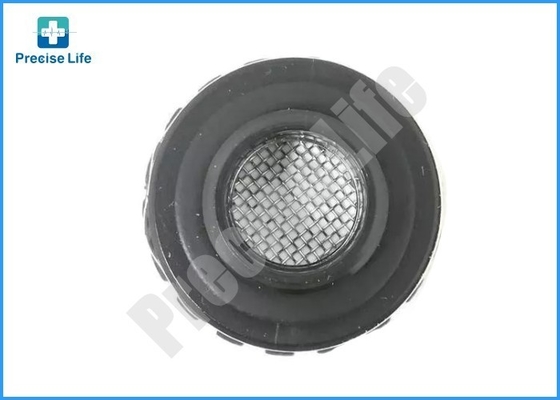

AII PSR-11-917-M Medical Oxygen sensor for ventilator PSR-11-917-M O2 sensor with Molex 3 pin
Specification of Oxygen sensor:
Output Signal |
10-13mV |
Measurement range |
0 to 100% O2 |
Output connector |
3 Pin Molex, mating Conn Molex 2201-2037 |
Accuracy |
With +/- 2% of full scale |
Response time |
<13 seconds |
Operating humidity |
0 to 99% RH (non-condensing) |
Operating temperature |
0 degree to 45 degree |
Storage temperature |
0 degree to 25 degree |
Warranty |
15 months |
Description of Oxygen sensor:
Galvanic type % Respiratory oxygen sensors with excellent stability and accuracy under stringent
applications. All % oxygen sensors are subjected to the most extensive stability test, output in air, 30″ of
water column pressure test and stability at 100% oxygen.
Compatible with:
* Carefusion Avea
* Carefusion Sipap
* Flight Medical HT50
* Taema Ceasar Ventilator (old)
* Versamed eVent Ventilators
* GE Ivent Ventilator
... ...
More compatible information contact us for details.
Advance:
Costs less than the sensors it replaces, creating additional savings while providing superior quality.
Note: All brands name above for reference only!
