Color: | White | Name: | R-17MED Phone Jack Oxygen Sensor |
---|---|---|---|
Application: | Ventilator | Feature: | Compatible And New |
Package: | 1 Pc Per Case | ||
Highlight: | Oxygen Sensor Medical,Oxygen Sensor Medical Equipment |

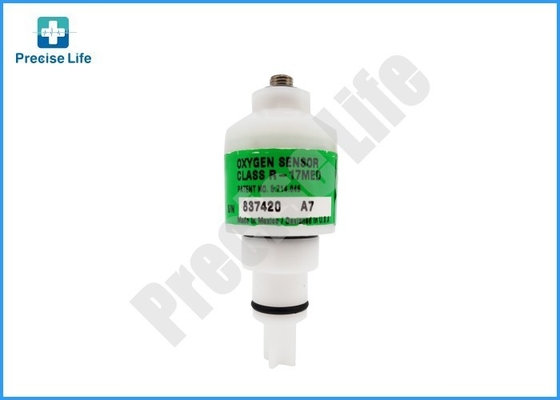

Compatible C43690 Oxygen sensor Phone jack connector R-17MED O2 cell for Ventilator
Description of Medical Oxygen sensor:
Offering long life and fast response, the high quality R-17MED replacement sensor incorporates a moulded body design. Specifically designed for medical use, this sensor also exceeds the demands of a modern operating theatre with added protection against long term effects of nitrous oxide.
Specification of Medical Oxygen sensor:
OEM sensor P/N |
C43690 |
Output Voltage |
7-13mV |
Measurement range |
0 to 100% O2 |
Output connector |
Phone Jack, 0.141’’ |
Accuracy |
With +/- 1% of full scale at constant temperature and pressure |
Response time |
<6 seconds |
Operating humidity |
0 to 99% RH (non-condensing) |
Operating temperature |
0 degree to 40 degree |
Storage temperature |
0 degree to 50 degree |
Warranty |
15 months |
Replacement for:
costs less than the sensors it replaces, creating additional savings while providing superior quality.
Note: All brands mention above just for reference only!
