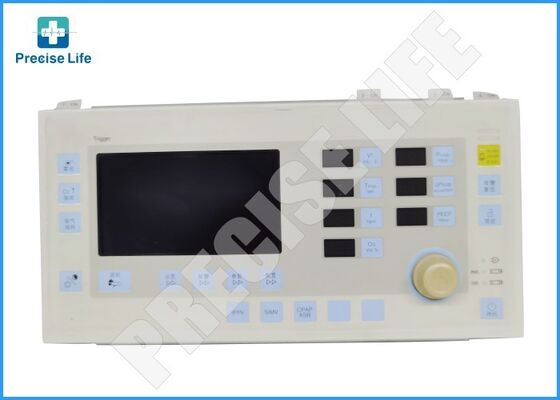

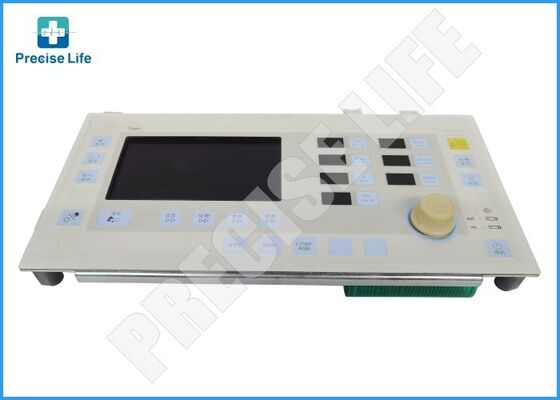

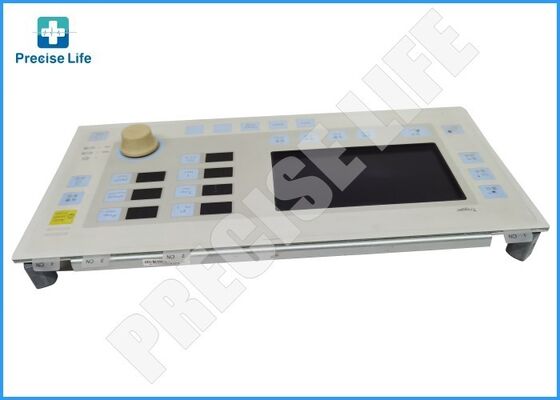

Drager Savina display assembly set Draeger Savina Front panel with LCD display with 8419571 board

Drager Savina display assembly set Draeger Savina Front panel with LCD display with 8419571 board

The Dräger Savina Front Cover with LCD Display is a precision-engineered structural and interface assembly designed specifically for the Dräger Savina series intensive care ventilators, including the Savina, Savina 300, and Savina 300 Classic platforms. Serving as the complete user-facing front panel, this integrated assembly combines a high-quality LCD display module with the protective front housing, presenting clinicians with a unified interface for ventilation parameter entry, patient data visualization, and alarm management. The LCD screen—available in monochrome (240×128 pixels) configuration for the classic Savina or 12.1-inch TFT color (800×600 pixels) configuration for the Savina 300—displays real-time patient parameters, measured values, curves, and warning messages with exceptional clarity. Constructed from durable medical-grade polymer with optimized surface finish for easy cleaning and disinfection, the front cover houses the display, control knob, and keypad interfaces while maintaining the Savina's compact, ergonomic design philosophy. This field-replaceable assembly enables biomedical engineering teams to restore ventilators with damaged, degraded, or malfunctioning display interfaces to full operational capability.

Specification of ventilator parts:

Description of ventilator parts:

This front cover assembly is extensively deployed across Intensive Care Units (ICUs), Intermediate Care Wards, Emergency Departments, Sub-Acute Care Facilities, and Intrahospital Transport scenarios where Dräger Savina ventilators provide turbine-driven mechanical ventilation for adult and pediatric patients. It serves as a critical field-replaceable unit for biomedical engineering teams, enabling rapid restoration of ventilators with cracked displays, degraded housings, or failed display modules during routine maintenance or after accidental impact. The assembly's integrated design supports the Savina's clinical application spectrum—from sub-acute weaning support to full intensive care ventilation—ensuring clinicians maintain continuous access to ventilation parameters, measured values, and alarm notifications across all patient acuity levels.

Advantage:

The Savina front cover distinguishes itself through its integrated display-and-housing design, combining the LCD module, backlight system, and structural enclosure into a single replaceable assembly, significantly simplifying maintenance workflows compared to component-level repairs. Its medical-grade polymer construction provides superior impact resistance and structural rigidity while maintaining the lightweight characteristics essential for the Savina's portable 24 kg design. The cover's optimized surface finish facilitates thorough cleaning and disinfection between patients, supporting infection control protocols without degradation in material integrity. Additionally, its precision-molded interfaces ensure seamless accommodation of the control knob, keypad, and alarm indicator LEDs, maintaining the intuitive user interaction model that defines the Savina series. The assembly's OEM-equivalent specifications guarantee proper display drive compatibility with the Control PCB and Front Panel PCB, ensuring reliable signal transmission and backlight operation.
