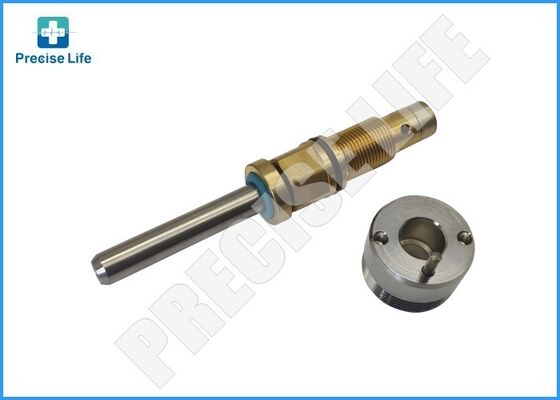

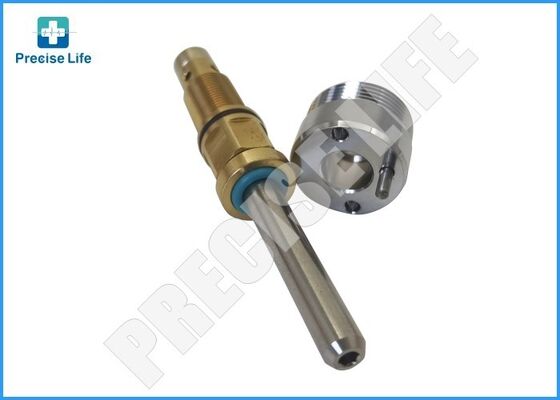

Drager 8606910 Metering Valve Draeger 8606910 Manifold Gas Metering Valve

Drager 8606910 Metering Valve Draeger 8606910 Manifold Gas Metering Valve

The Dräger 8606910 Manifold Gas Metering Valve is a sophisticated multi-channel pneumatic control assembly engineered specifically for Dräger's comprehensive range of intensive care ventilators and anesthesia workstations, including the Evita, Savina, Fabius, and Primus device families. Serving as the central gas distribution hub within the pneumatic subsystem, this OEM-specification manifold integrates multiple metering channels into a single compact unit, precisely regulating the flow of O₂, N₂O, and Medical Air from the central supply or cylinder sources into the breathing circuit. Manufactured to Dräger's stringent medical-grade quality standards, it features precision-machined internal passages and high-durability valve seats that ensure consistent flow accuracy and leak-tight sealing across extended operational cycles. This critical component is essential for maintaining the accuracy of fresh gas delivery, FiO₂ concentration, and tidal volume across all ventilation modes.

Specification:

Description:

This manifold gas metering valve is extensively deployed across Intensive Care Units (ICUs), Operating Theaters, and Emergency Departments where Dräger ventilators and anesthesia workstations deliver critical respiratory and anestheti support. It serves as a vital Field Replaceable Unit (FRU) for biomedical engineering teams, enabling rapid resolution of gas flow inconsistencies, inaccurate flowmeter readings, or internal manifold leakage. Its robust multi-channel construction supports continuous 24/7 clinical operation, ensuring that precise gas metering is maintained during prolonged mechanical ventilation, low-flow anesthesia delivery, and emergency respiratory interventions across adult, pediatric, and neonatal patient populations.

Advantage:

The 8606910 manifold distinguishes itself through its integrated multi-channel architecture, consolidating multiple gas metering functions into a single compact assembly, thereby reducing connection points, minimizing potential leak paths, and simplifying installation. Its precision-machined internal passages deliver linear flow response across all channels, allowing clinicians to set exact gas concentrations with confidence and repeatability. The manifold's high-cycle durability construction withstands thousands of adjustment operations without degradation in flow accuracy or sealing integrity. Furthermore, its OEM-standardized mounting interface enables straightforward, tool-assisted replacement during scheduled preventive maintenance, minimizing equipment downtime and ensuring full system compatibility without recalibration requirements.
