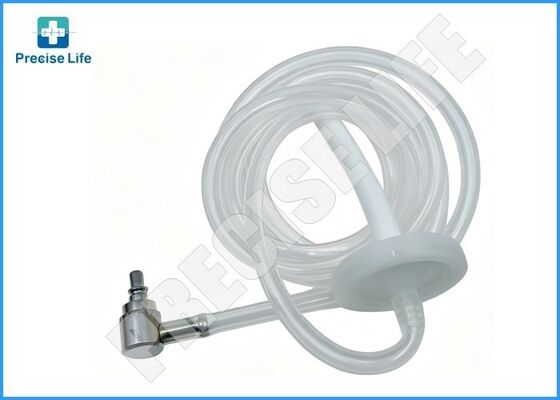

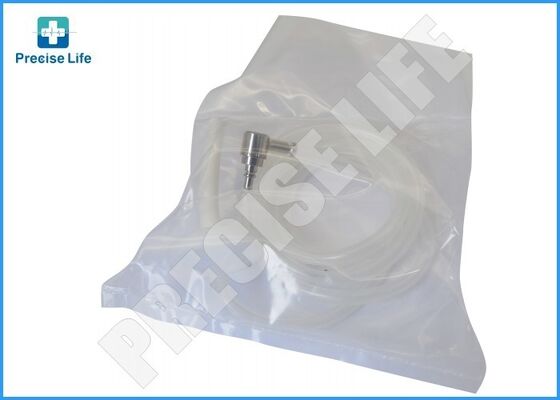

Drager 8302841 Pressure Gauge Line Draeger 8302841 pressure measuring Tube for Fabius anesthesia machine

Drager 8302841 Pressure Gauge Line Draeger 8302841 pressure measuring Tube for Fabius anesthesia machine

The Drager 8302841 Pressure Gauge Line is a precision-engineered pneumatic tubing assembly specifically designed for the Drager Fabius series anesthesia workstations, including the Fabius GS, Fabius GS Premium, Fabius Plus, and Fabius Tiro models. This critical component serves as the primary conduit for transmitting airway pressure signals from the breathing system to the mechanical pressure gauge, enabling clinicians to monitor real-time patient airway pressure during anesthesia delivery. Manufactured to Drager's stringent medical device standards, the 8302841 line features medical-grade silicone or polyurethane tubing with reinforced walls that resist kinking, compression, and chemical degradation from exposure to volatile anesthetic agents. The assembly includes precision-molded connectors that ensure leak-free attachment to both the breathing circuit pressure tap and the gauge inlet, maintaining accurate pressure transmission without signal dampening. As a genuine OEM replacement part, the 8302841 guarantees seamless compatibility with the Fabius platform's mechanical pressure monitoring system, supporting reliable clinical decision-making and patient safety throughout surgical procedures.

Specification of ventilator parts:

Description of ventilator parts:

This essential pneumatic component is extensively deployed in operating rooms, ambulatory surgery centers, emergency departments, and critical care units utilizing Drager Fabius anesthesia platforms. The 8302841 pressure gauge line is primarily utilized during mechanical ventilation management, where accurate airway pressure monitoring is critical for preventing barotrauma and ensuring optimal lung protection. Anesthesiologists and nurse anesthetists rely on this tubing assembly to maintain a reliable pressure signal pathway that enables real-time visualization of peak inspiratory pressure (PIP), mean airway pressure, and positive end-expiratory pressure (PEEP) on the mechanical gauge. Biomedical engineering technicians integrate the line into scheduled preventive maintenance (PM) protocols, inspecting for cracks, kinks, or connector wear that could compromise pressure accuracy or cause gas leaks. The assembly's robust construction supports continuous operation in high-turnover surgical environments, ensuring consistent performance across diverse patient populations from neonates to adults.

Advantage:

OEM Precision Fit: Designed to exact Drager specifications, the 8302841 ensures perfect connector alignment and tubing diameter that matches the Fabius breathing system pressure ports, eliminating compatibility issues and installation difficulties.

Signal Integrity Preservation: The reinforced tubing construction prevents compression and kinking during machine movement or patient positioning, ensuring undistorted pressure transmission that maintains gauge accuracy within ±2% of scale value.

Chemical Resistance: Medical-grade materials withstand prolonged exposure to volatile anesthetic agents, cleaning disinfectants, and sterilization processes without degradation, cracking, or loss of flexibility over the component's service life.

Leak-Free Connectivity: Precision-molded barbed fittings create secure, airtight seals at both connection points, preventing pressure signal loss that could lead to inaccurate gauge readings or delayed alarm activation.

Cost-Effective Maintenance: As a field-replaceable component, the 8302841 enables targeted replacement of worn pressure lines without requiring full gauge assembly replacement, reducing repair costs and equipment downtime.
