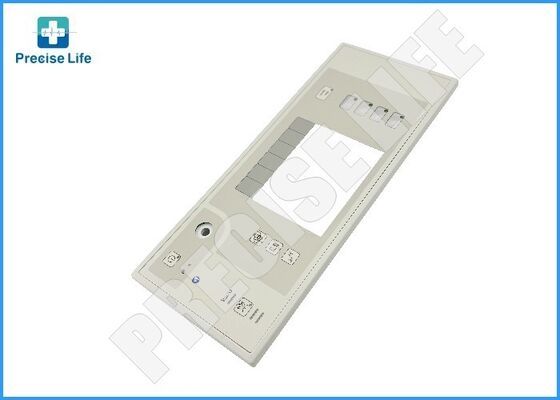

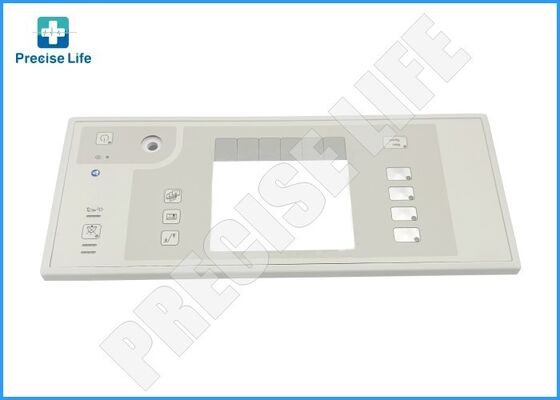

Drager 8608014 front panel for Fabius Plus anesthesia machine Drager 8608014 Keypad

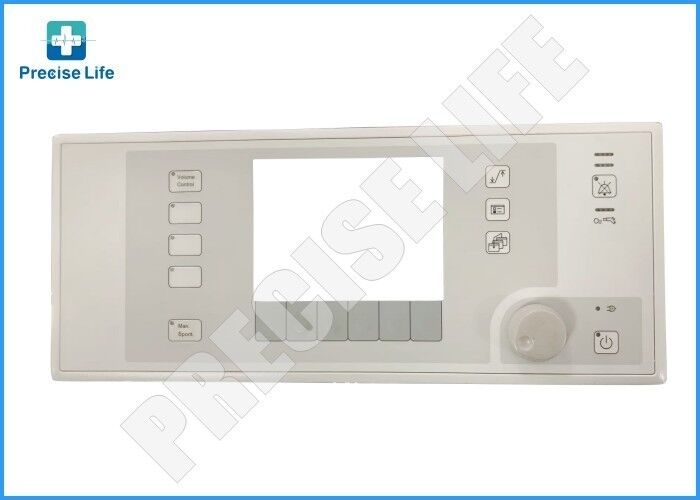

The Drager 8608014 Front Panel/Keypad is a genuine OEM control interface assembly designed specifically for the Drager Fabius Plus anesthesia workstation. This precision-engineered front panel serves as the primary human-machine interface, integrating a high-visibility display screen with an intuitive keypad layout that enables seamless operation of the anesthesia delivery system. Manufactured to Drager's exacting quality standards, this assembly combines durable membrane switch technology with ergonomic button positioning, ensuring reliable performance in demanding operating room environments. The panel features strategically arranged hard keys for immediate ventilation mode selection—Volume Control, Pressure Control, Pressure Support, SIMV/PS, and ManSpont—alongside programmable soft keys that dynamically adapt to current operational contexts. Each unit undergoes rigorous factory testing to guarantee compatibility, responsiveness, and long-term durability essential for critical care applications.
Specification medical equipment repair parts:
|
Brand: Drager
|
|
Part number: 8608014
|
|
Name:Flow Sensor
|
|
Machine model:Fabius plus,Fabius Plus XL
|
|
Key Type:Hard Keys + Soft Keys + Rotary Knob
|
|
Warranty: 90 days
|
|
Delivery time: about 1 week
|
Description Medical equipment repair parts:
This critical control interface component serves as the operational command center for the Fabius Plus anesthesia workstation, primarily deployed in operating rooms, ambulatory surgical centers, and procedural suites where precise anesthesia management is essential. Anesthesiologists and certified nurse anesthetists rely on this front panel to configure ventilation parameters, monitor patient respiratory data, adjust fresh gas flows, and manage alarm settings throughout surgical procedures. The integrated 6.5-inch TFT display presents comprehensive monitoring information including airway pressure (PAW), tidal volume (VT), inspiratory oxygen concentration (FiO2), and ventilation waveforms in both numeric and graphical formats. The keypad enables rapid mode switching during emergency situations, allowing clinicians to transition between controlled ventilation and spontaneous breathing modes with minimal interruption to patient care. This assembly is indispensable for maintaining the full functionality and operational readiness of the Fabius Plus anesthesia platform.
Intuitive Ergonomic Design: The control panel features a streamlined layout with clearly labeled hard keys positioned adjacent to the display screen, enabling quick access to major functions without navigating complex menu hierarchies. The rotary dial knob provides tactile feedback for precise parameter adjustments, even when operators wear surgical gloves.
Dynamic Soft Key Configuration: Six programmable soft keys located below the screen display context-sensitive functions indicated by on-screen labels, adapting automatically to current operational modes—whether in standby, ventilation setup, or alarm configuration—reducing cognitive load during critical procedures.
High-Visibility Display Integration: The panel incorporates a bright 6.5-inch TFT color screen with optimized contrast ratios and wide viewing angles, ensuring critical patient data remains clearly visible under varying operating room lighting conditions, including bright surgical illumination or dimmed environments during endoscopic procedures.
Durable Medical-Grade Construction: Engineered with robust membrane switch technology and sealed button assemblies, this front panel withstands frequent cleaning and disinfection protocols, including exposure to standard medical cleaning agents, while maintaining consistent tactile response and electrical reliability throughout extended service life.
