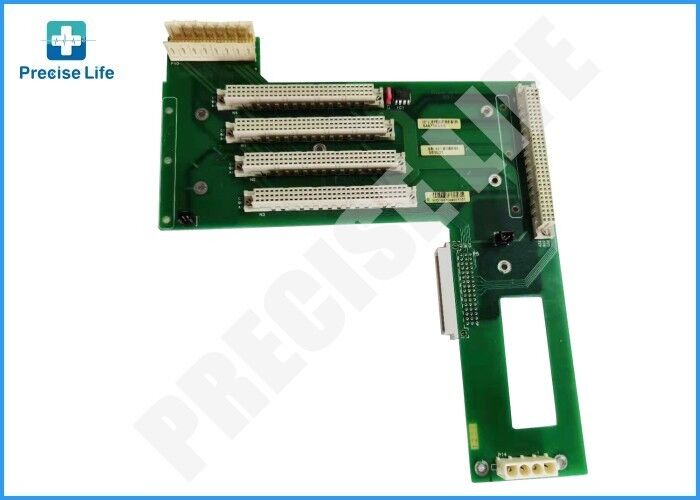

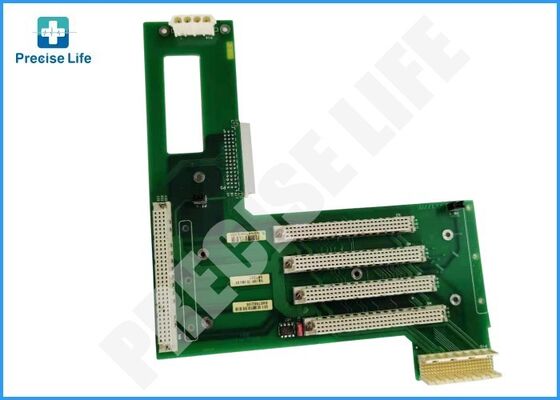

Maquet 6467562 circuit board PC1770 circuit board for Servo i ventilator

Maquet 6467562 circuit baord PC1770 circuit board for Servo i ventilator

Description of ventilator parts PC1770:

The PC1770 Circuit Board (Part No. PC1770) is the central interconnection platform of the Maquet SERVO-i ventilator system. Officially designated as the Main Back-plane board, this multi-layer passive circuit board is installed in the lower part of the patient unit and provides the physical and electrical backbone to which the functional plug-in cards — such as PC 1771 Control and PC 1772 Monitoring — are docked. Its EEPROM stores vital machine data, including the ventilator's System ID (serial number), configuration and the time stamp for preventive maintenance. Supplied by Precise, this board is the trustworthy foundation that keeps every subsystem of your SERVO-i communicating flawlessly.

Specification of ventilator parts:

The PC1770 back-plane is a strategic spare part for hospitals, independent service organizations and parts distributors supporting SERVO-i ventilator fleets. It is the indicated replacement when several plug-in boards fail to communicate simultaneously, subsystems are not recognized at startup, or repeated node-related error codes point to an interconnection fault. Please note that, according to the original service documentation, the EEPROM on PC1770 carries the ventilator's identity data — replacement therefore requires a board programmed for the specific machine, and the preventive maintenance schedule must be updated after installation.

Advantages:

Complete Interconnection Platform — One board links all functional plug-in cards, restoring full internal communication across the patient unit.

Multilayer Craftsmanship — Carefully manufactured multilayer construction ensures stable signal routing and clean power distribution between subsystems.

Data Integrity Protected — Reliable EEPROM storage safeguards the ventilator's System ID, configuration and maintenance records.

Thoroughly Verified — Every board passes continuity, insulation and interconnection testing before shipment.

Smart Investment — Dependable replacement quality at a competitive price, protecting your long-term service budget.
